(Module)OLED Film Laser Abnormity Cutting Equipment
The equipment utilizes laser energy to remove parts of the cell through cutting, to form a specific shape. The equipment comprises a feeding unit, a laser cutting unit, and an unloading unit.
Equipment Advantages
-
01Synchronous cutting with multiple laser heads to improve cutting efficiency
-
02High-precision visual positioning and inspection system
-
03High efficiency cutting dust removal and platform cleaning function
-
04
-
05
-
06

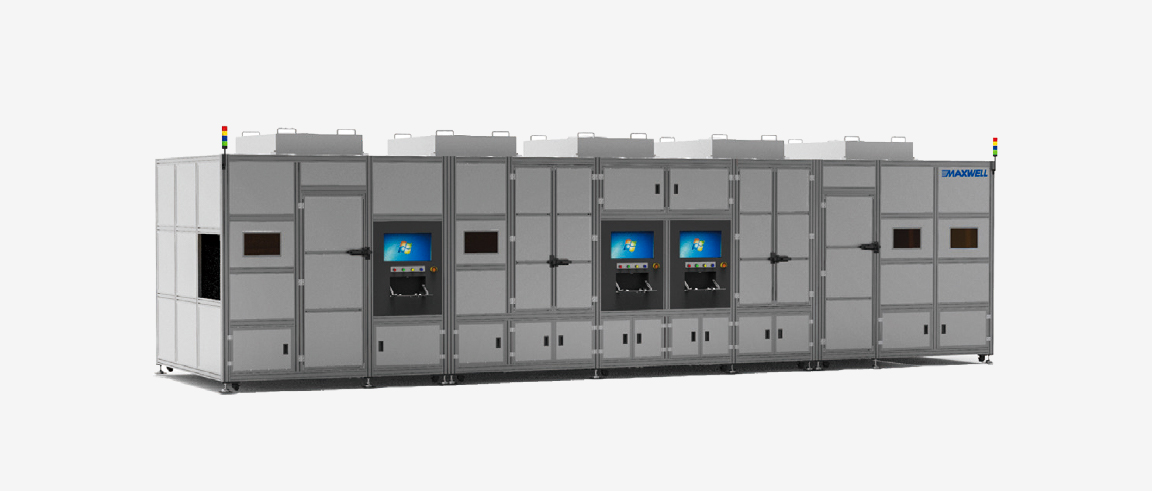

Equipment Picture
Basic Parameters
-
1. Applicable products: flexible OLED
-
2. Product thickness:0.1mm~0.8mm
-
3. Applicable product size: 1~8 inches(6mmx10mm~140mmx200mm)
-
4. Tack Time: 4.5s/cell(8inche)
-
5. Cutting method: XY direction platform and Fixed laser cutting head
-
6. Heat influence range :≤70μm(Laser cutting surface)
-
7. Cutting accuracy: ≤±30μm(CPK≥1.33)
-
8. Jig replacement position: Cutting platform
-
