(Module)OLED Film Laser Drilling Equipment
The equipment utilizes laser energy to remove parts of the product by a specific shape to form the hole-shaped of the product. The equipment comprises a feeding unit, a laser cutting unit, and an unloading unit.
Equipment Advantages
-
01Synchronous cutting with multiple laser heads to improve cutting efficiency.
-
02High-precision visual positioning and inspection system.
-
03High efficiency cutting dust removal and platform cleaning function.
-
04
-
05
-
06

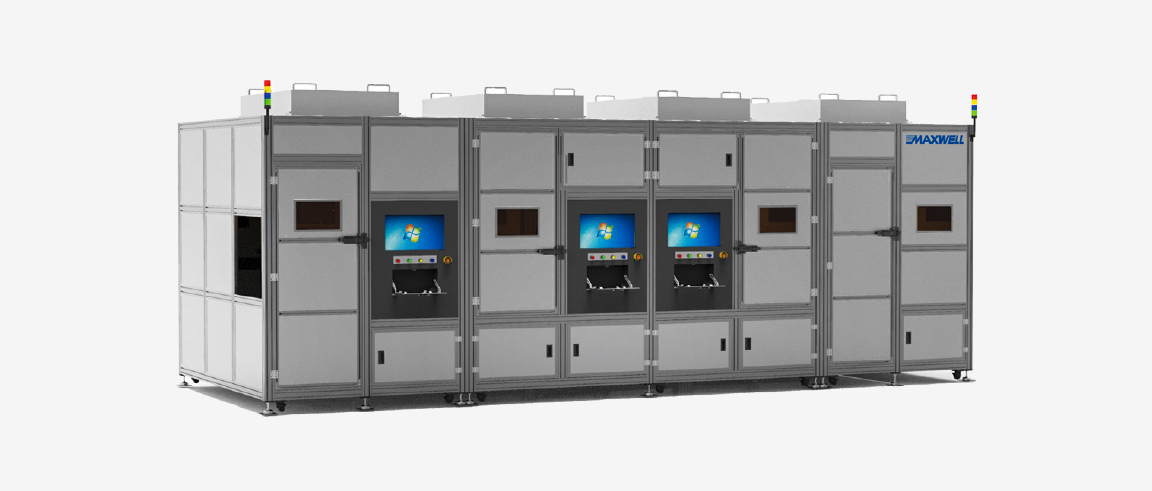

Equipment Picture
Basic Parameters
-
1. Applicable products: flexible OLED
-
2. Product thickness:0.1mm~0.8mm
-
3. Applicable product size: 1~8 inches(6mmx10mm~140mmx200mm)
-
4. Tack Time: 4.5s/cell(8 inches)
-
5. Heat influence range :≤45μm(Laser cutting surface)
-
6. Cutting accuracy: ≤±20μm(CPK≥1.33)
-
7. Jig replacement position: cutting platform
-
