High-speed Perc Laser Equipment
Automatic loading and unloading system, dust removal system, laser system, optical path transmission system, automatic positioning camera and software, high-speed galvanometer scanning system, man-machine interface system and program, processing graphic editing and processing system, and discharge light spot extraction and detection system.
Equipment Advantages
-
01Adopt high-speed DD four-station interactive work to ensure high productivity
-
02High-speed galvanometer scanning, the galvanometer scanning speed is ≥60m/s, and the digital control mode is adopted to greatly improve the laser marking efficiency
-
03Support multi-layer design, double layers can optimize different parameters
-
04High power green laser with wavelength of 532nm, maximum power ≥55W and power stability ≤2%RMS
-
05Dual-track independent control to ensure maximum production capacity
-
06

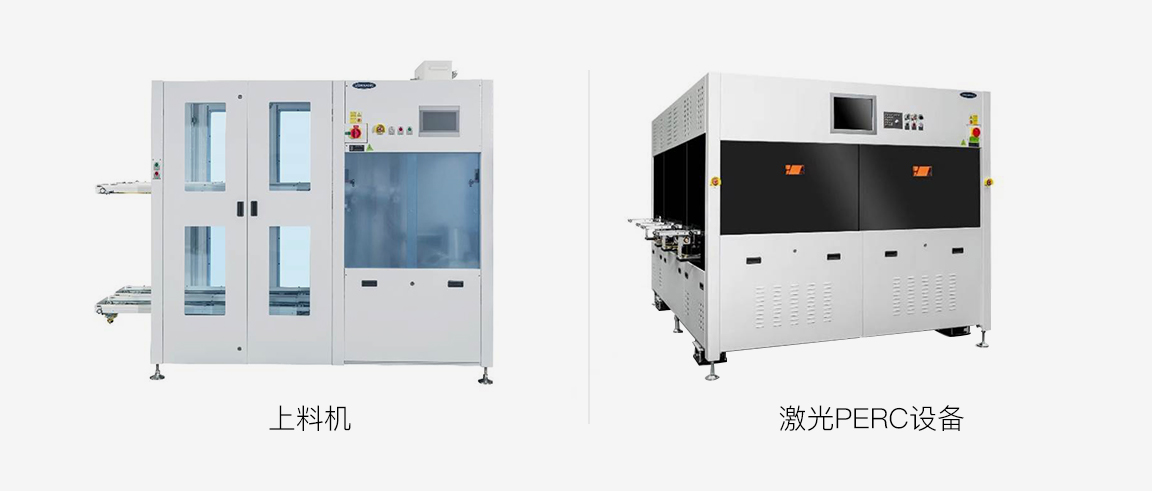

Equipment Picture
Basic Parameters
-
1. Equipment Size : 5500mm x 2730mm x 2260mm
-
2. Wafer Size : 156mm x 156mm ~ 230mm x 230mm , Thickness:140~220μm
-
3. Double-line Productivity : M10≥8500PCS/H ; M12 ≥7200PCS/H(Compatible with 230 sources at the same time)
-
4. Breakage Rate ≤ 0.05%(Except for incoming cracks)
-
5. Uptime ≥ 98%
-
6. Laser Wavelength : 532nm
-
7. Laser Frequency ＜ 2000Khz
-
8. Laser Power : 30w~55W
-
9. Power Stability ＜ 2% RMS
-
10. Laser Lifetime ≥ 50000小時
-
11. Scan Mode : Galvanometer scanning
-
12. Spot Size : 35um±5um(Adjustable in size)
-
13. Scanning Speed ≥ 35m/s
-
14. Graphic Marking Accuracy ≤ ±15μm
-
15. Loading Breakage Detection : 12 million pixels (general),Edge collapse and corner missing can be detected
-
16. Graphics Compatibility : Compatible with plt, dxf, dwg graphics formats(Compatible with points, lines and segments)
-
17. Dust Removal and Filtration Efficiency : Dust removal ≥95%, filtration ≥99%,(Independent dust removal equipment, exhaust air volume max2000m3/h)
-
