Mini LED Wafer Laser Stealth Cutting Equipment
This equipment is mainly used for LED blue-green sapphire wafer cutting and processing, internal quality modification. The equipment includes automatic loading and unloading units, counterpoint unit, a laser Stealth Cutting unit and a control unit.
Main Advantages
-
01Equipped with high precision linear motor, high speed X-Y movement platform
-
02Unattended fully automatic processing for both normal wafer and debris
-
03Independent research and development of DFT technology, high efficiency and high quality processing
-
05
-
06

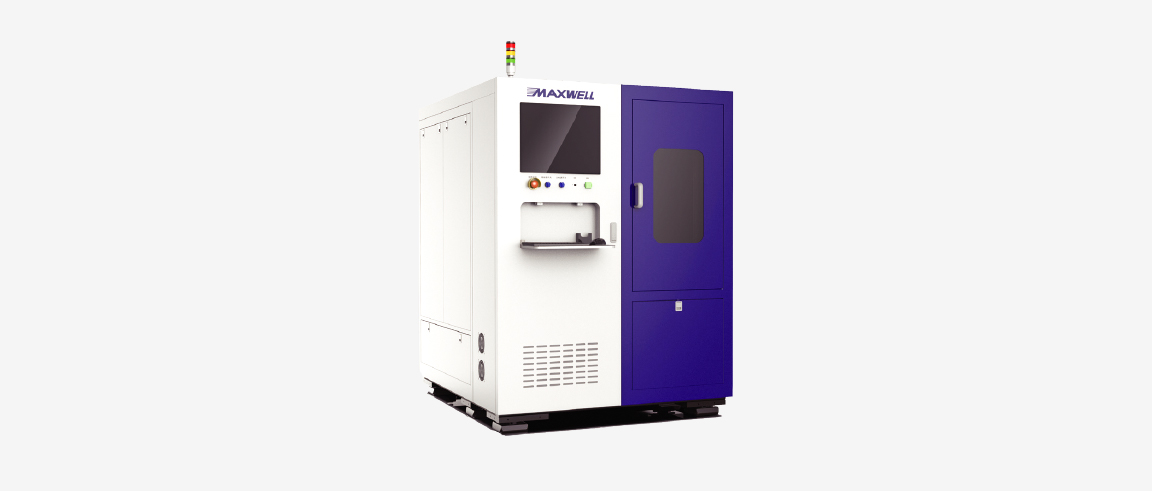

Equipment Picture
Basic Parameters
-
1. High machining accuracy: Cut size edges ≤ 1.5μm
-
2. High processing efficiency: Max Running Speed 1000mm/s
-
3. Good Cutting: Cut wavy lines ≤ ± 2μm
-
4. Machinable wafer size: 2 ~ 6 inches of wafer, capability of stealth cutting for minimum cutting path of 12μm
-
5. Product compatibility: Machinable traditional LED Sapphire Wafer and Mini LED wafer
-
6. Easy maintenance of the equipment: utilizing bus control system, self-diagnosis system, with low failure rate, high stability and high maintainability
-
7. Design/Manufacturing/Maintenance integration to ensure the consistency, stability and rapid responding of the equipment
-
